Monday, August 8, 2016

Section: 29
Hours: 4

I worked on fitting the side skins today. I clecoed them in place and drilled the #30 holes where they attach to the center plate.

I also worked on fitting the hinge sections to the firewall and sidewall. I discovered that I used the wrong hinge material when I originally cut these pieces- the proper hinges are 7/8" wide and what I used initially was narrower. I found the correct hinge material and cut new ones and then match drilled them to the firewall/side skins. Then I counter sank all the holes and dimpled the spacer pieces.

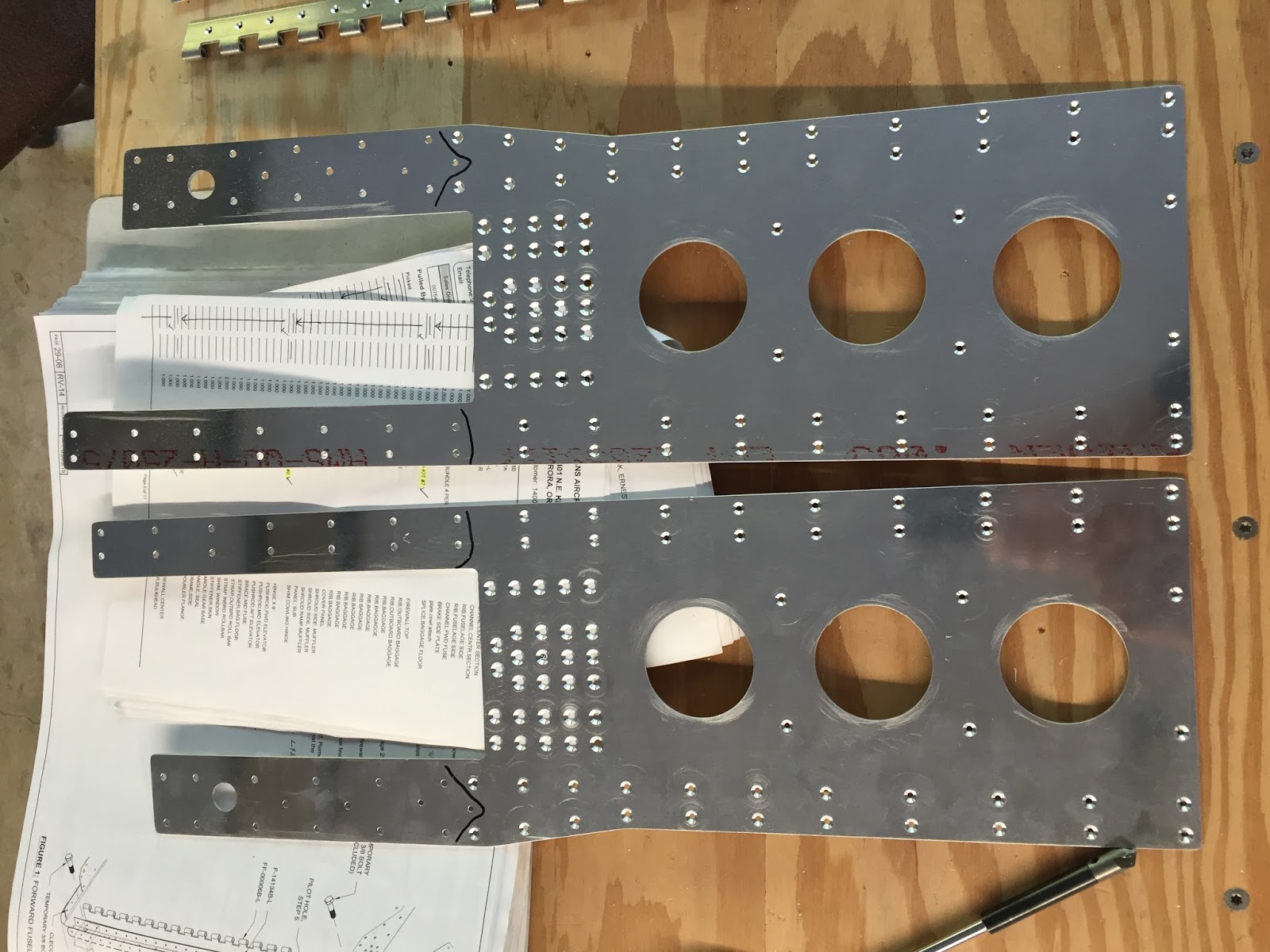

I also drilled the counter sinks into the center section side plates.
