Wednesday, October 7, 2015

Section: 10
Hours: 8

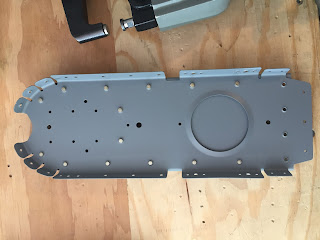

I riveted the F-01412 bulkhead and began assembling the recently primed parts onto the tail cone.

I ran into problems getting the F01410 bulkhead to fit and discovered that I had riveted it together backwards. The doublers and hstab attach bars fit equally well on either side of the bulkhead and I had chosen the wrong side when I did the riveting. I initially tried to drill out the rivets, but I was not happy with the result so I decided to order replacement parts from Vans.
Don't rivet the doublers to this side!
